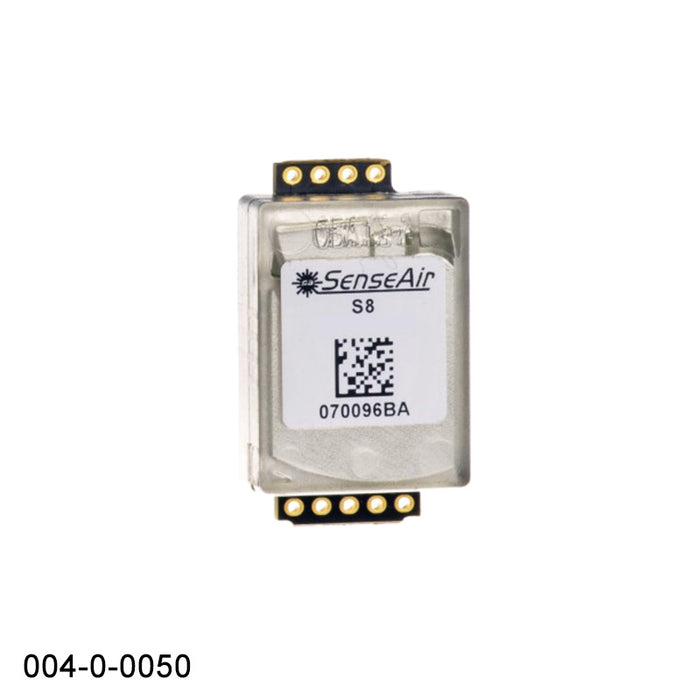

The Sensesair S8 2% CO2 Sensor (004-0-0050, was SE-0031) is designed to be used in control and alarm applications. This sensor can further be integrated into a wide range of applications including CO2 leak detection.

Features

  • Miniature size
  • Easy integration
  • Individually calibrated
  • Maintenance-free
  • Long term stability
  • Low power consumption

Models

  • Senseair S8 2% CO2 Sensor (004-0-0050) - for high volume production with focus on control and alarm applications
  • Sensor Development Kit (CM-200) - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide or use our library of source code on Github to build your own application or for OEM batch testing/configuration. Order sensors on this page, then order the Devkit here.

We recommend that all first time users purchase both this sensor and the CM-200 Development Kit for fastest and easiest results.

Specifications

  • CO2 Measurement: non-dispersive infrared (NDIR)
  • Measurement Method: diffusion
  • Measurement Range: 0.04-2% vol
  • CO2 Accuracy: ±200ppm ±3% of reading 1, 2
  • Communication Options: UART (Modbus)
  • Operating Temperature: 0 to 50°C
  • Response Time: 2 minutes by 90%
  • Dimensions: 8.5 x 33.5 x 20 mm
  • Sensor Life Expectancy: > 15 years

Electrical / Mechanical

  • Power Supply:4.5 V to 5.25VDC
  • Max Current: 300 mA < 18mA average.
  • Power Consumption: 300mA peak, 30mA average

Warranty

  • 90 days - See CO2Meter Terms and Conditions.

CO2 Sensor Documention S8 Sensor Datasheet (pdf)

CO2 Sensor Documention S8 Sensor Manual (pdf)

CO2 Sensor Documentation Handling Manual Sensair S8 (pdf)

Senseair ISO Certification Senseair ISO Certification (pdf)

Accessories

Gas Sensor Development Kit (CM-200)- designed to provide customers with an easy drop-in solution. Includes our free Gaslab data logging software. Sensor sold separately.
