1% Carbon Dioxide Sampling Data Logger
Regular price
$1,872.00
Regular price
$1,872.00
Sale price
$2,400.00
Unit price
per
The 1% Carbon Dioxide Sampling Data Logger is designed to measure carbon dioxide concentrations in enclosed environments such as indoor air quality and HVAC applications.
Features
- Instant CO2 sampling - gain measurements in seconds!
- User programmable to measure at specific intervals
- Data Logging with micro SD Card (16GB included), with real-time graphing
- Li-ion rechargeable batteries lasting 30+ hours (3 included)
Applications
- Indoor Air Quality
- HVAC
- Scientific Research
Specifications
- Sensing method: NDIR (Non-Dispersive Infrared)
- Measures: CO2 - 1% (0-10,000ppm) CO2
- Relative Humidity: 0~95%, ±3% @25°C (20~80%RH), others ±5%
- Temperature: 0~50°C,±1℃
- Barometer: 50~110kPa, ±0.4kPa
-
Display Resolution: CO2: 1ppm, 10ppm, or 100ppm
- Accuracy: ±70 ppm +/- 5% of reading @ STP
- Alarm Volume: 80db ±5% @10cm
- Display Resolution: CO2: 1ppm, 10ppm, or 100ppm
- Operating Conditions: 0~50°C(32~122°F), 0~95%RH, non-condensing
- Storage Temperature: -20~60°C(-4~140°F)
- Power: (3) Li-ion 18650 Batteries
- Weight: 305g (without batteries)
- Dimensions: 225.8 x 99.6 x 55 mm (8.9 x 3.9 x 2.2 in.)
Includes

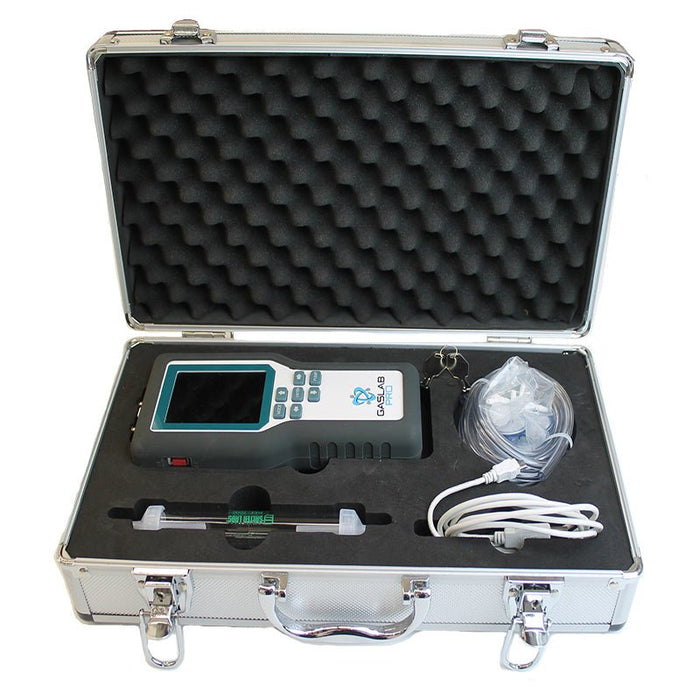

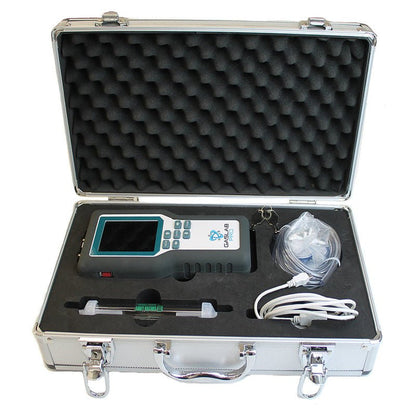

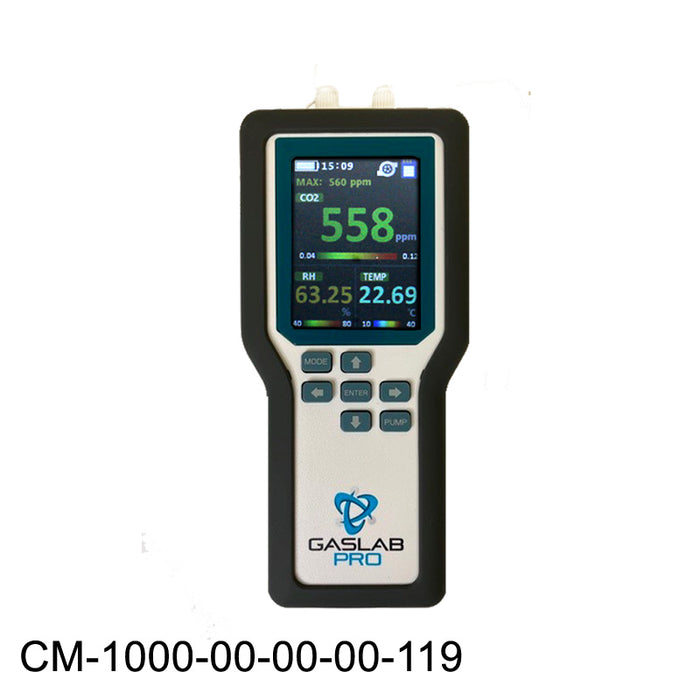

- Handheld CO2 Sampling Data Logger Detector
- Manual
- USB 1.5m Cable
- 3 Li-Ion Batteries
- 16 GB SD Card - required for calibration files

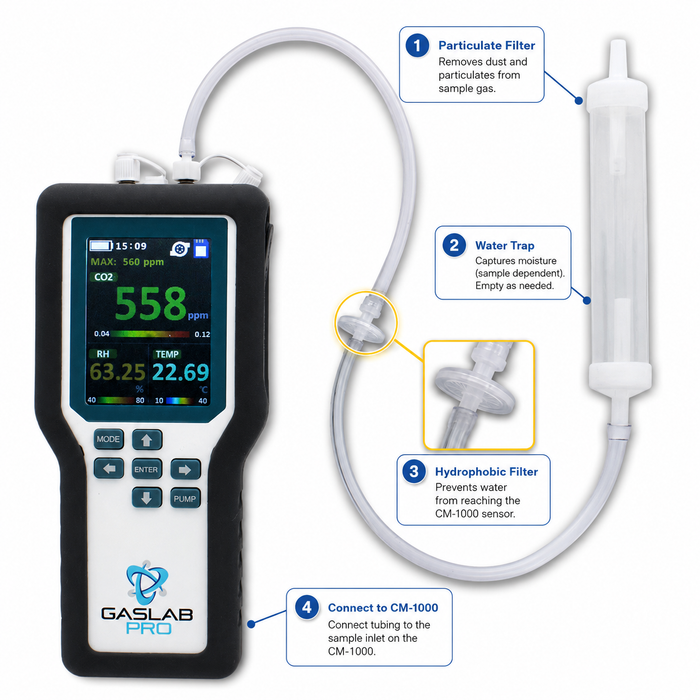

- Tubing - 3m 1/8" ID x 1/4" OD x 1/15" Wall Clear PVC Tubing
- Hydrophobic and Particulate Filters
- Water Trap
Warranty
- 1 year - See CO2Meter Terms and Conditions.
Documents
Datasheet (pdf)
Manual (pdf)
GasLab Pro Pump Notice (pdf)
GasLab Pro Calibration SD Card Notice (pdf)
CM-1000 Video Playlist - Settings, Data Logging, Calibration (web)
Software Options
This device features data logs that are stored on a micro SD Card.
Our GasLab® Software is not compatible with this device.
Accessories
- BAT-18650 - EBL 18650 3.7V Li-ion Rechargeable Batteries - provide a fast charge and are upgraded ETL certified to be used with all CM-500 and CM-1000 series handheld gas detectors.
- EBL Universal Battery Charger - Charge the lithium batteries via a USB cable. Provides a clear indication of charge levels, turning green after fully charged.
