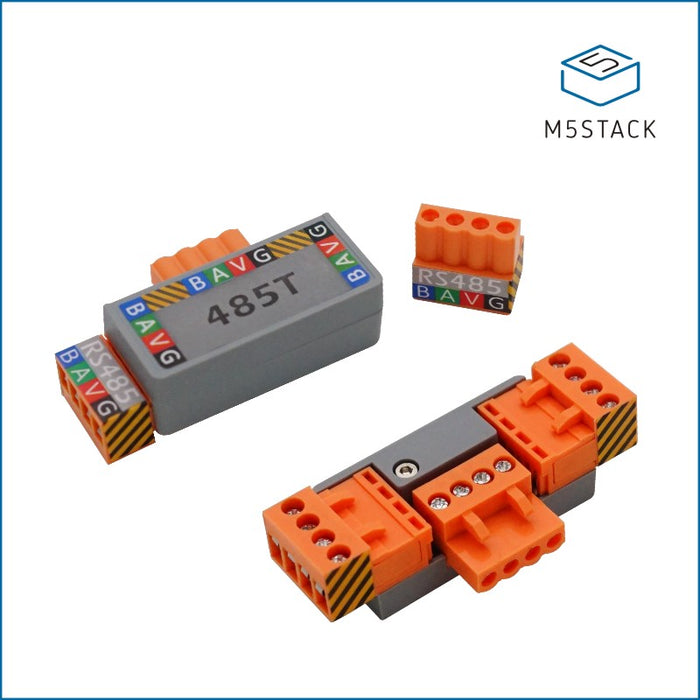

M5Stack RS485T T-Shaped Connector

Description

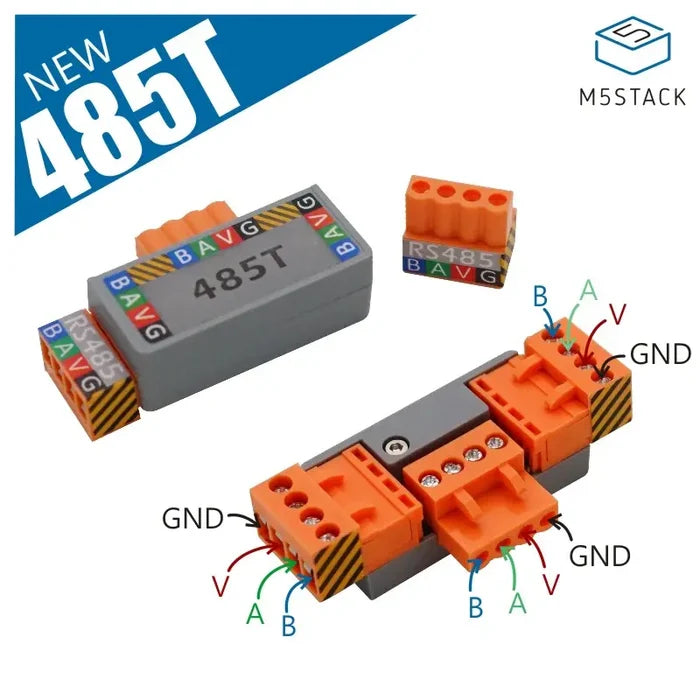

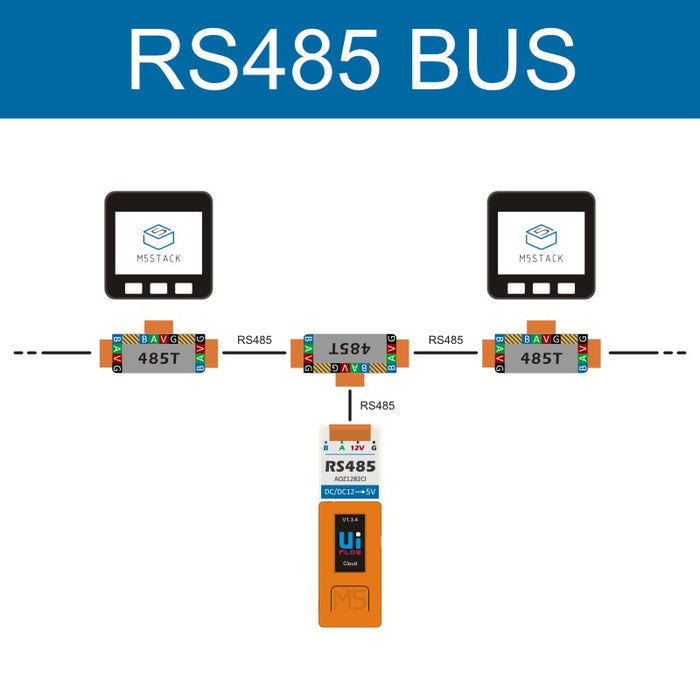

485T is an RS485 bus T-shaped connector that can expand a single RS485 bus into two channels. It provides reliable connections for point-to-point and point-to-multipoint communication. It features a power indicator LED, making the power status more intuitive. It is suitable for RS485 devices with the same 4 Pin 3.96mm specification interface (such as PLC, PLC-M12, Base26, and Hat RS485 in the M5Stack ecosystem).

Features

• Interface Type: 4 Pin 3.96mm terminal block

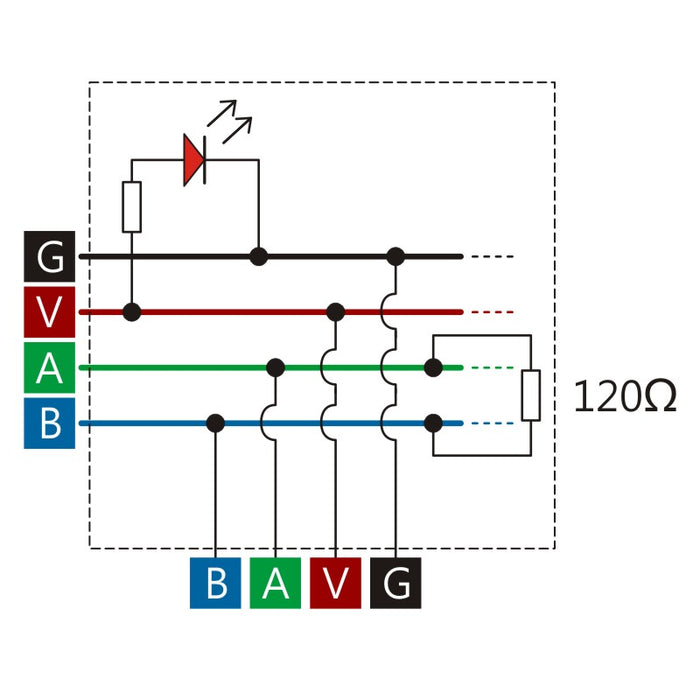

• Built-in power indicator: Red

Includes

• 1 x 485T

Specifications
