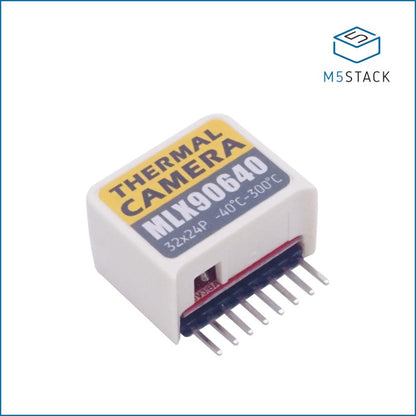

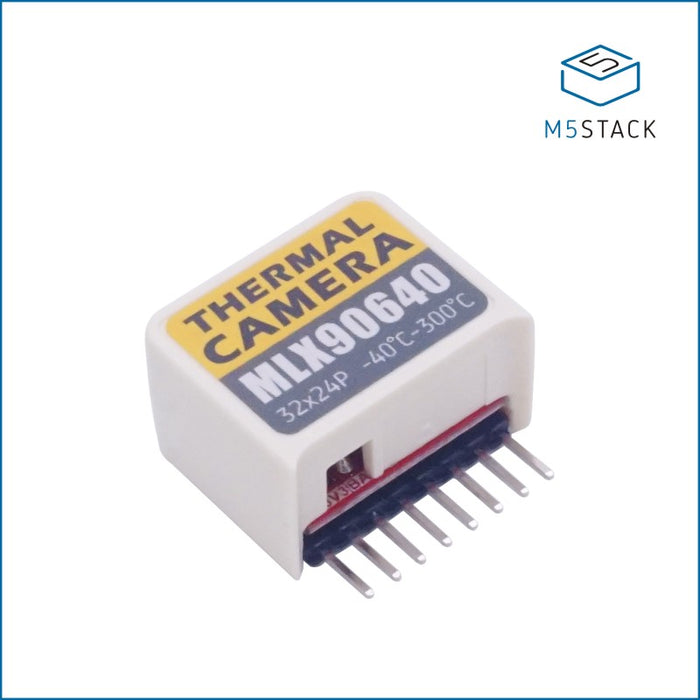

M5StickC Thermal Camera Hat(MLX90640)

Description

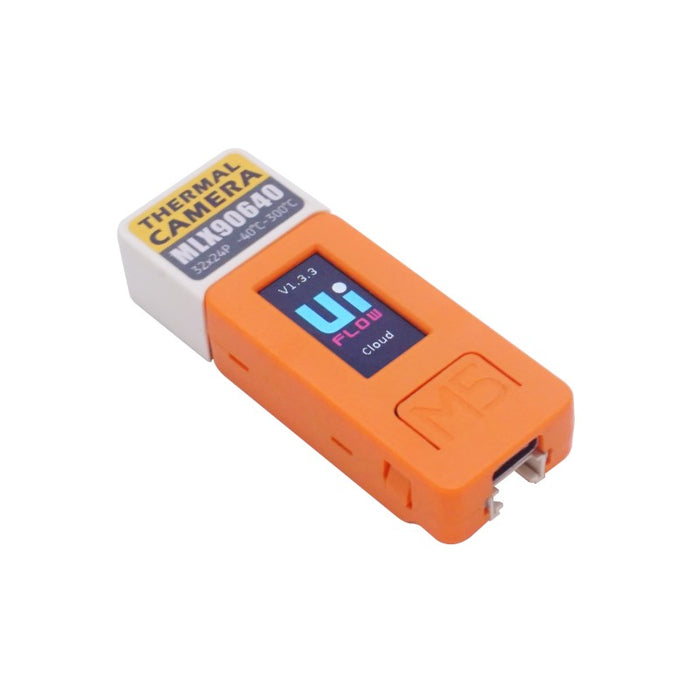

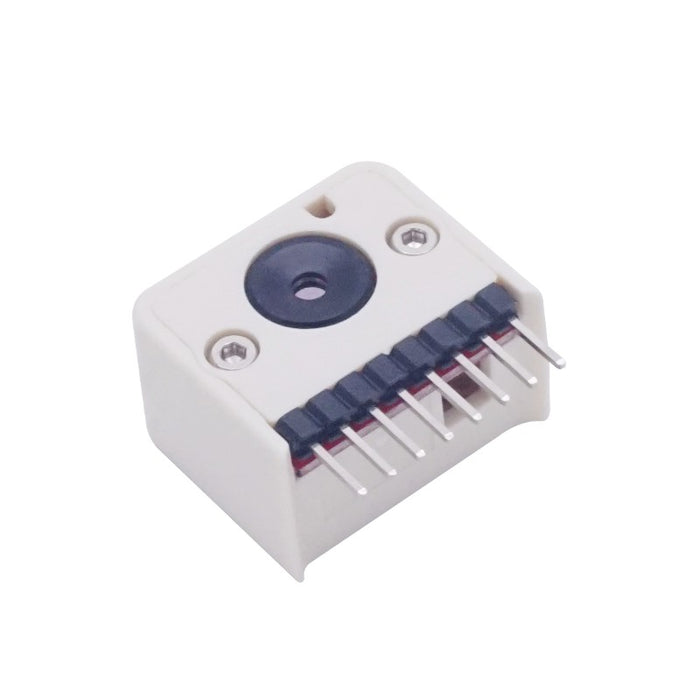

Hat Thermal is a human body infrared thermal imaging device compatible with M5StickC. It is equipped with a built-in MLX90640 thermopile sensor, capable of measuring the surface temperature of objects and generating thermal images (image resolution 32 x 24) based on the temperature gradients formed by the surface temperatures. The MLX90640 infrared (IR) sensor array offers high resolution and the ability to operate reliably in harsh environments. Compared with expensive high-end thermal cameras, the Hat Thermal provides a cost-effective alternative. Relative to general microbolometers, the advantage of this sensor lies in its ability to operate without frequent recalibration, ensuring continuous detection and reducing system maintenance costs.

Features

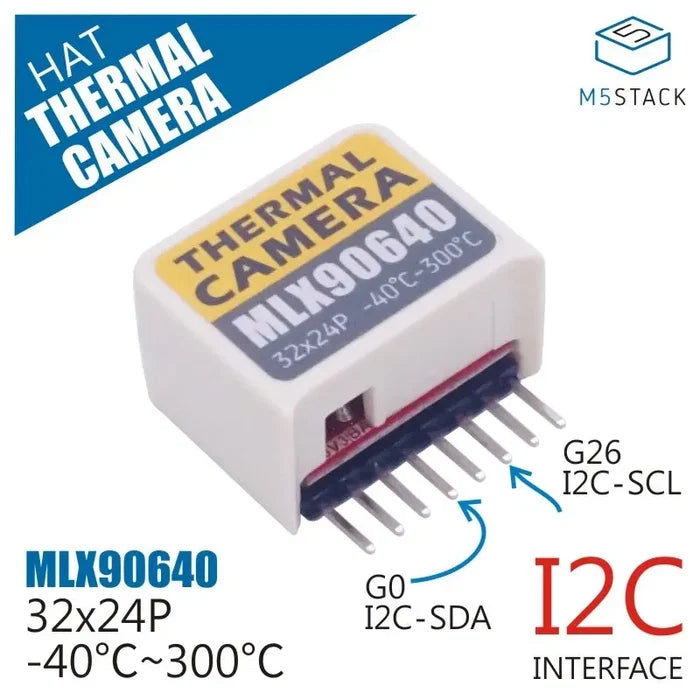

• I2C Address: 0x33 (GPIO 0/26)
• Operating Current: 23mA
• Field of View: 110° x 75°
• Temperature Measurement Range: -40°C ~ 300°C
• Accuracy: ±1.5°C
• Refresh Rate: 0.5Hz-64Hz
• Operating Temperature: -40°C ~ 85°C

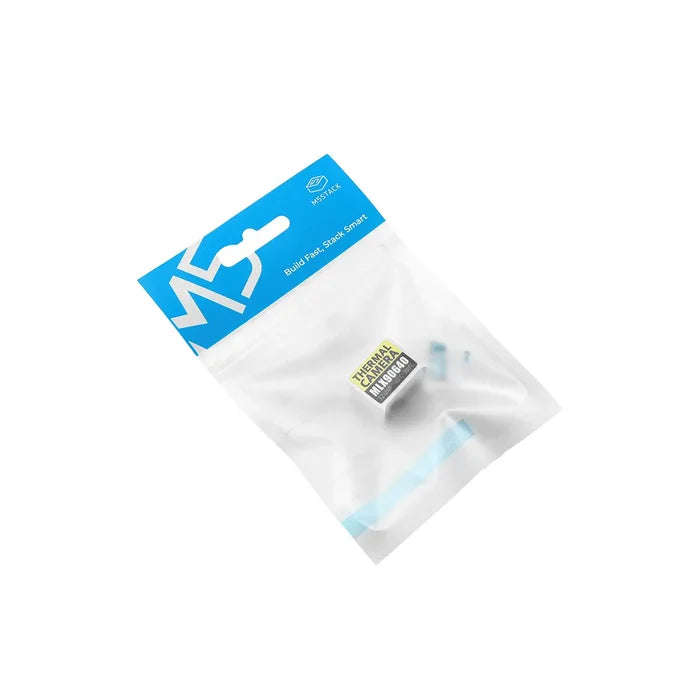

Includes

• 1 x Hat Thermal
• 1 x Double-Sided Tape

Applications

• High-precision non-contact thermometer
• Biological motion detection

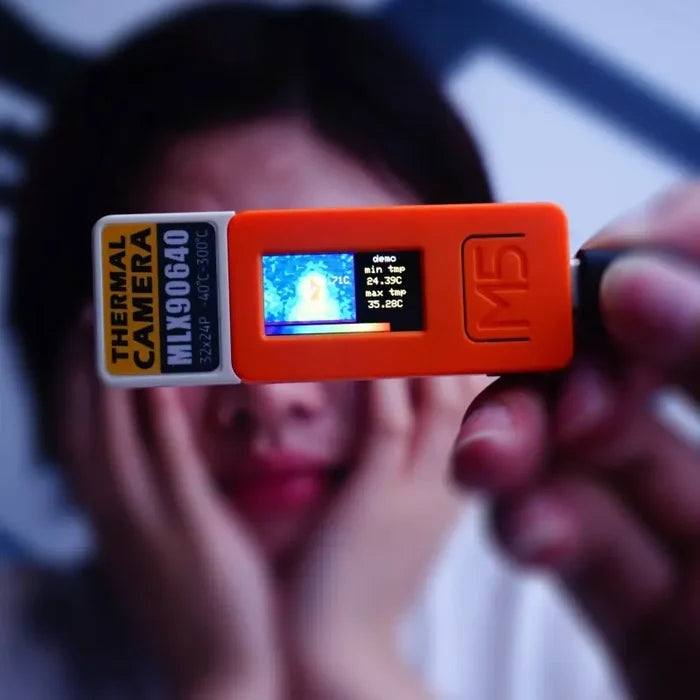

• Visual infrared imaging

Specifications

Specification	Parameter
Communication Interface	I2C Communication @0x33

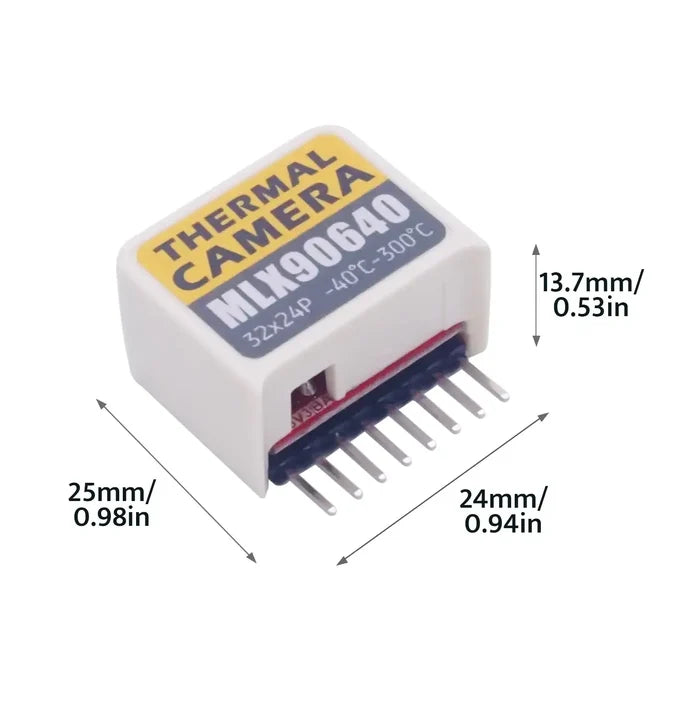

Product Size	25.0 x 24.0 x 13.7mm
Product Weight	8.0g
Package Size	138.0 x 93.0 x 14.0mm
Gross Weight	13.0g

Learn and Documents

→ DOCUMENTS
