M5StickC ToF HAT(VL53L0X)

Description

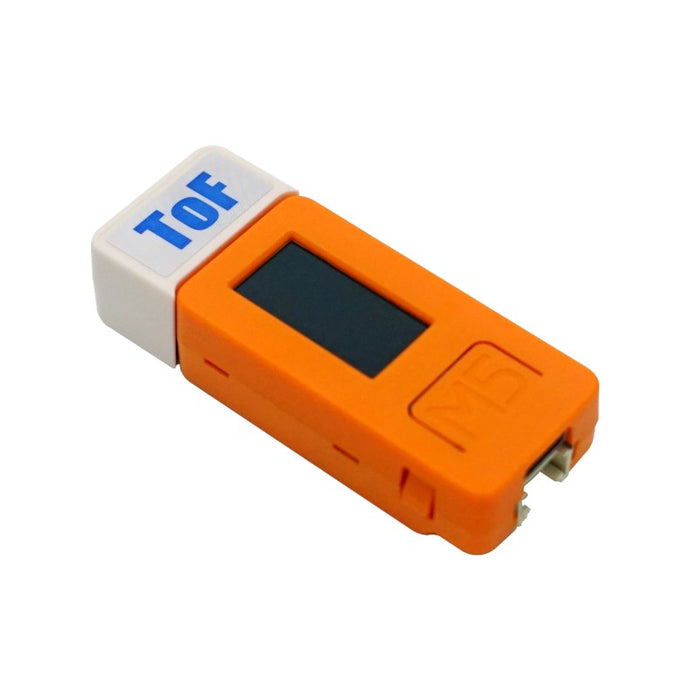

Hat ToF is a high-precision laser distance sensor designed specifically for SticKC. It integrates the ST laser ranging chip VL53L0X and 940nm VCSEL emitter. By measuring the round-trip time of the laser signal to the object being measured, it can measure the absolute distance within a 2m range in less than 30ms. Unlike traditional distance measurement, it provides accurate distance measurement data regardless of the reflectivity of the target. In projects where data accuracy is important, such as distance measurement and obstacle detection, Hat ToF performs well.

Features

• High precision

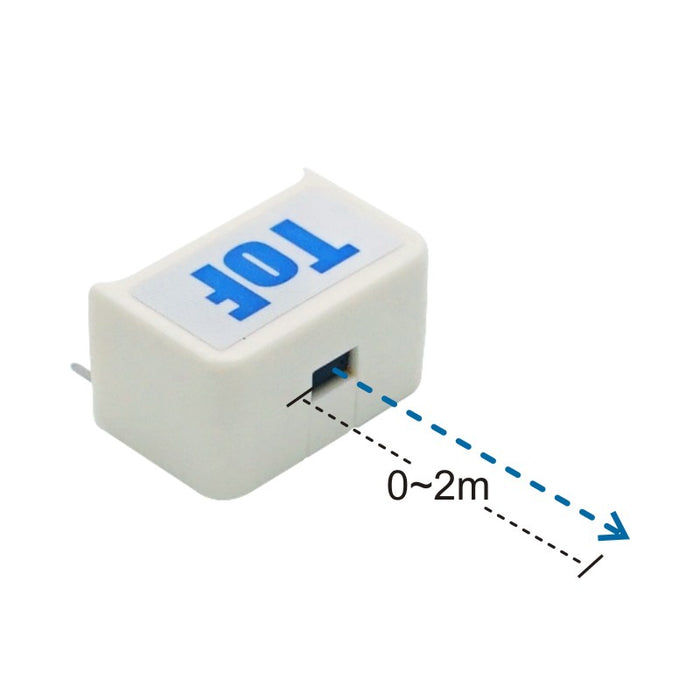

• Maximum measurement distance of 2m
• Measurement accuracy ±3%
• 940nm laser VCSEL
• Safety:
  • Class 1 laser device compliant with the latest standards
  • Standard IEC 60825-1:2014 - Edition 3

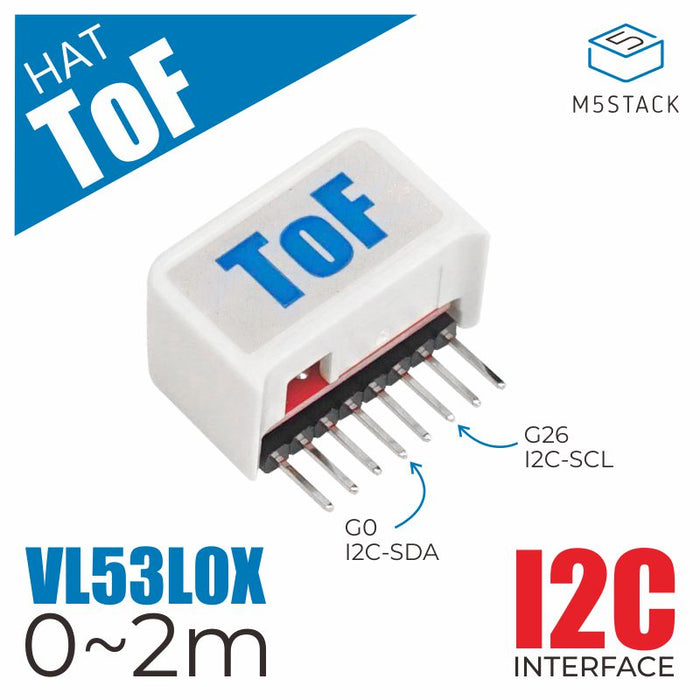

• Communication protocol: I2C address is 0x29 (G0/G26)
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE

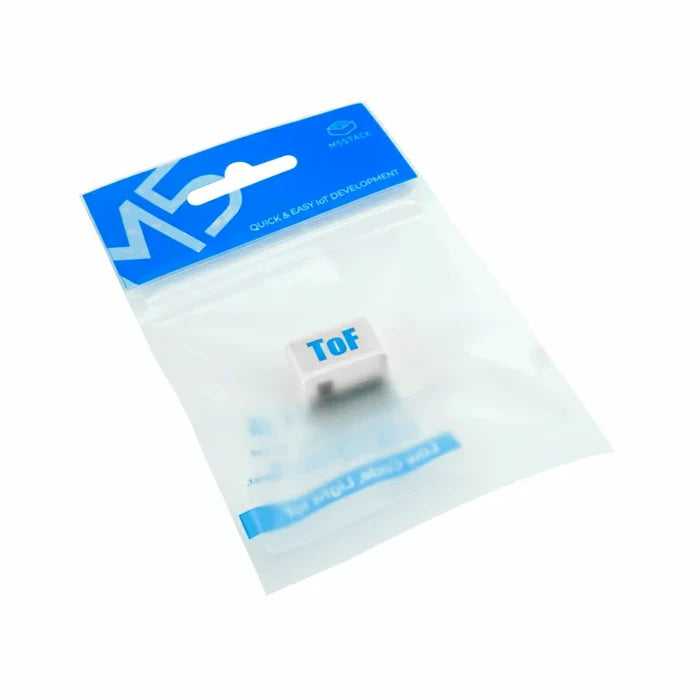

Includes

• 1 x Hat ToF
• 1 x Sticker

Applications

• Obstacle detection
• Gesture recognition
• Laser ranging
• 3D structured light imaging (3D sensing)
• Camera assistance (ultra-fast autofocus and depth map)
