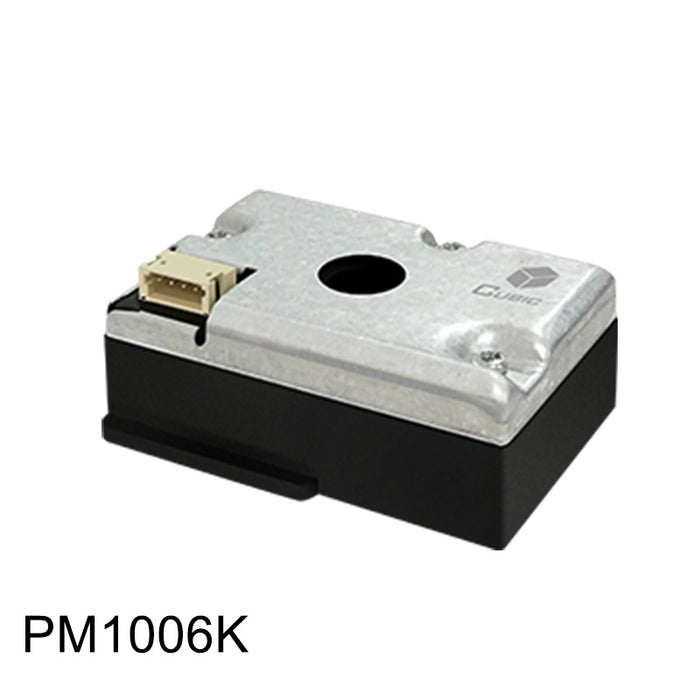

PM1006K Low Cost PM2.5 Sensor

PM1006K Low Cost PM2.5 Sensor

$9.10
$9.10 $14.00
SAVE 35% Sold out

The PM1006K Low Cost PM2.5 Sensor is designed to provide real time output PM2.5 with dust deposition self-correction. It can also measure dust concentration in the air by detecting the intensity of scattered light, and output real time concentration via mathematical algorithm and scientific calibration.

Features

  • Particle Measurement Range: 0.3µm to 10µm
  • Built-In MCU directly outputs particle mass concentration
  • EMI shielded
  • Temperature compensation throughout the entire measurement range

Models

PM1006K - low cost pm2.5 sensor with real-time output and dust deposition self correction.

PM1006K Specifications

  • Measured particle size: 0.3µm to 10µm
  • Measurement range: 0 to 1,000µg/m3
  • Accuracy: +/–20% or +/–20µg/m3
  • Temperature range: -4˚F to 167˚F (-20˚C to 75˚C)
  • Humidity range: 0 to 95% RH
  • Supply voltage: 5.0VDC +/-0.2VDC
  • Supply current: <30mA
  • Communication interfaces: UART & PWM
  • Dimensions: 59mm x 45mm x 20mm
  • Weight: 17.4g
  • Lifespan: 5 years

    Warranty

    • 90 days - See CO2Meter Terms and Conditions

    Manual PM1006K PM1006K DataSheet/Manual (pdf)
